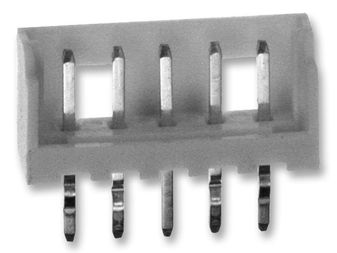

53253-0570
Pin Header, Wire-to-Board, 2 mm, 1 Rows, 5 Contacts, Through Hole Straight, Micro-Latch 53253
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 53253-0570
Secondary Manufacturer Part#: 53253-0570
-
RoHS 10 Compliant -
Tariff Charges
Micro-Latch Wire to Board Connector System provides electrical and mechanical reliability in a high-temperature design that meets industry requirements.
- Friction lock provides better terminal retention
- Polarizing feature ensures accurate mating orientation
- 22AWG to 30AWG cables are used
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon 66 | ||
| Straight | ||
| Brass | ||
| Tin | ||
| Header | ||
| Natural | ||
| Tin | ||
| 20 mOhm | ||
| 2 A | ||
| Through Hole | ||
| 5 | ||
| 1 | ||
| -40 to 105 °C | ||
| 2.0000 mm | ||
| 3.65 mm | ||
| 12 x 3.65 x 5.5 mm mm | ||
| 5.5 mm | ||
| 12 mm | ||
| 53253 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
