52117-0341

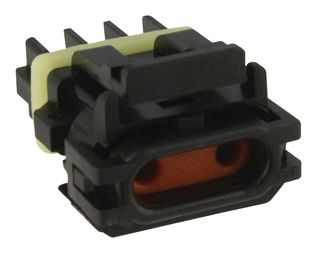

Connector Housing, Mizu-P25 52117, Receptacle, 3 Ways, 2.5 mm
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 52117-0341
Secondary Manufacturer Part#: 52117-0341
-
RoHS 10 Compliant -
Tariff Charges
Mizu-P25 2.50mm pitch waterproof Wire-to-Wire receptacle housing is a miniature sealed system with IP67 rating. It mates with 52116 series Mizu-P25 2.50mm pitch Waterproof wire-to-wire plug housing.
- Dustproof and waterproof protection
- Space savings for tight-packaging applications
- Positive locks provide secure mating retention
- Polyester housing
- Current rating is 3A
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyester | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| Cable Mount | ||
| -40 to 105 °C | ||
| 2.5000 mm | ||
| 15.7 mm | ||
| 12.4 x 15.7 x 9.7 mm | ||
| 9.7 mm | ||
| 12.4 mm | ||
| 22 to 20, 22 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
