503398-1892

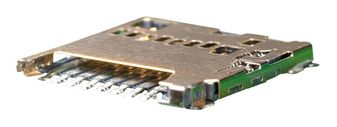

Conn Micro SD Card Receptacle 8 POS Solder Right Angle Surface Mount
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Memory Card Connectors
Avnet Manufacturer Part #: 503398-1892
Secondary Manufacturer Part#: 5033981892
-
RoHS 10 Compliant -
Tariff Charges
The 503398-1892 from Molex is a microSD memory card socket. It is a surface mount, push-push type, 1.28mm height memory card socket.
- Right angle orientation
- 8 circuits loaded
- Current rating is 0.5A
- Voltage rating is 10VAC/DC
- Phosphor bronze with gold plated contacts
- 1.10mm pitch spacing
- Operating temperature range from -25°C to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled LCP (Liquid Crystal Polymer)|Stainless Steel | ||
| Right Angle | ||
| Phosphor Bronze | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Black | ||
| Tin Over Nickel | ||
| 0.5 A | ||
| Surface Mount | ||
| 8 | ||
| 1 | ||
| -25 to 85 to 85 °C | ||
| 1.1000 mm | ||
| 14.05 mm | ||
| 1.28 mm | ||
| 13.1 mm | ||
| 503398 | ||
| Solder | ||
| Micro SD Card |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
