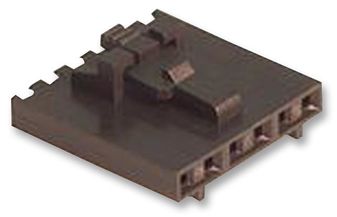

50-57-9406
Connector Housing, Single Row, Version G, Back Ribs, SL 70066, Receptacle, 6 Ways, 2.54 mm
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 50-57-9406
Secondary Manufacturer Part#: 50-57-9406
-
RoHS 10 Compliant -
Tariff Charges
The 50-57-9406 is a 6-way 1-row version-G SL™ female socket crimp housing made of polyester alloy with positive latch. It mates with 70018, 70543, 70545, 70553, 70555, 70107, 70541, 70551, 70634 and 74099 products. The crimp housing is suitable for signal and wire-to-board applications. This 70066 series crimp housing can be used with 70058, 71851 SL™ crimp terminals and 73099 CyClone panel-to-panel connector.
- Black colour
- UL94V-0 flammability rating
- Stackable
- Maximum current per contact is 3A
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Polyester | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| 3 A | ||
| Cable Mount | ||
| 6 | ||
| 1 | ||
| -40 to 105 to 105 °C | ||
| 2.54 mm | ||
| 15.24 mm | ||
| 15.21 x 15.24 x 6.58 mm | ||
| 6.58 mm | ||
| 15.21 mm | ||
| 70066 | ||
| Wire to Board Housing | ||
| 600 Vdc|Vac | ||
| 36 to 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
