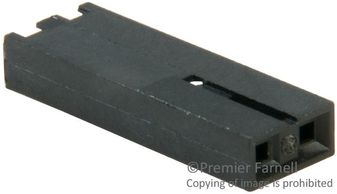

50-57-9002
Connector Housing, Single Row, SL 70066 Series, Receptacle, 2 Ways, 2.54 mm
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 50-57-9002
Secondary Manufacturer Part#: 0050579002
-
RoHS 10 Compliant -
Tariff Charges
The 50-57-9002 is a 2-way 1-row non-polarized version-A SL™ female socket crimp housing made of polyester alloy. It mates with 42375, 42377, 70280, 70287, 71308, 70543 and 70553 products. The crimp housing is suitable for signal and wire-to-board applications. This 70066 series crimp housing can be used with 70058 and 71851 SL™ crimp terminals.
- Black colour
- UL94V-0 flammability rating
- Stackable
- Maximum current per contact is 3A
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Polyester | ||
| Straight | ||
| Receptacle | ||
| Black | ||
| Cable Mount | ||
| -40 to 105 °C | ||
| 2.5400 mm | ||
| 15.24 mm | ||
| 5.05 x 15.24 x 2.51 mm | ||
| 2.51 mm | ||
| 5.05 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Ships
in 1 bus. day
