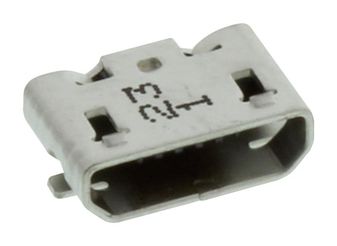

47346-1001
USB Connector, Micro USB Type B, USB 2.0, Receptacle, 5 Ways, Surface Mount, Right Angle
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, I/O Connectors, USB Connectors
Avnet Manufacturer Part #: 47346-1001
Secondary Manufacturer Part#: 0473461001
-
RoHS 10 Compliant -
Tariff Charges
Micro-USB 2.0 type B right angle receptacle without flange offers advantage of smaller size and better durability compared with the Mini-USB.
- Bottom-mount
- Over-mould process used for receptacles
- Supports USB On-The-Go (OTG) supplement
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold Flash | ||
| Receptacle | ||
| Gold Flash over Nickel | ||
| 255 °C | ||
| Surface Mount | ||
| 5 | ||
| 1 | ||
| -30 to 85 °C | ||
| 0.6500 mm | ||
| 5.43 mm | ||
| 7.8 x 5.43 x 2.94 mm | ||
| 2.94 mm | ||
| 7.8 mm | ||
| 47346 Series | ||
| Micro USB Type B | ||
| USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
