47346-0001
Conn Micro USB Type B Receptacle 5 POS 0.65mm RA Surface Mount 1 Port
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Electrical, USB Charger Receptacles
Avnet Manufacturer Part #: 47346-0001
Secondary Manufacturer Part#: 47M0505
-
RoHS 10 Compliant -
Tariff Charges

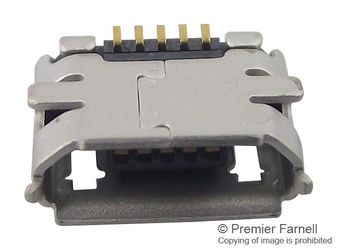

47346-0001 is a 47346 series, fully shielded, Micro-USB B receptacle with flange.
- Stainless steel shell (0.30mm [.019"] thick)
- Simple edge-contact beam geometry of connector shell
- Over-mould process used for receptacles
- 0.30mm (.019"") thick laser-welded stainless-steel shell of receptacle
- Passive latching window with angular tabs (meets USB 2.0 requirements) on receptacle shell
- Rear shield of stainless steel shell in standard-mount versions
- Pick and place area (3.00mm diameter [.118""]) on connector shell
- Halogen-free receptacles
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 47346 | ||
| USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
