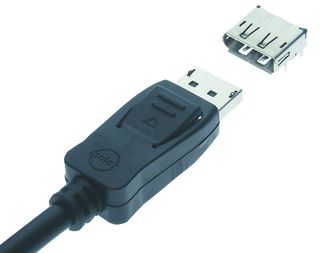

47272-0001
DisplayPort Connector, No Cover, 20 Contacts, Receptacle, Surface Mount, Through Hole Right Angle
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Audio & Video Connectors, Display Port Connectors
Avnet Manufacturer Part #: 47272-0001
Secondary Manufacturer Part#: 0472720001
-
RoHS 10 Compliant -
Tariff Charges
The 47272-0001 is a 20-position 0.5mm DisplayPort receptacle with 0.76µm gold-plated contacts, right angle, SMT, without cover, Mylar or flange, with latch holes, peg and solder tab of shell and lead-free.
- Plastic locating peg
- Detent locks
- Latches
- Metal shielding on all sides
- Solder tab
- Small footprint
- Polarized mating geometry
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Stainless Steel|Glass Filled LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Matte Tin Over Nickel | ||
| Surface Mount | ||
| 20 | ||
| 1 | ||
| -20 to 85 to 85 °C | ||
| 0.5 mm | ||
| 14.39 mm | ||
| 17.79 x 14.39 x 6.65 mm | ||
| 6.65 mm | ||
| 17.79 mm | ||
| 47272 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
