47054-1000
Connector Housing, KK 254 47054, Receptacle, 4 Ways, 2.54 mm, 2759 Crimp Terminal
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 47054-1000
Secondary Manufacturer Part#: 47054-1000
-
RoHS 10 Compliant -
Tariff Charges

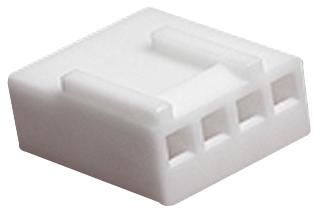

The 47054-1000 is a 4-way 1-row KK® 254 housing with polarization rib, nylon body, Suitable for use with 2759 series crimp terminals.
- Maximum per contact current is 4A
- Ivory colour
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Receptacle | ||
| Ivory | ||
| 4 A | ||
| 250 V | ||
| Cable Mount | ||
| 4 POS | ||
| 1 | ||
| 0 to 75 °C | ||
| 2.5400 mm | ||
| 12.7 mm | ||
| 10.8 x 12.7 x 5.82 mm mm | ||
| 5.82 mm | ||
| 10.8 mm | ||
| 47054 | ||
| Housing | ||
| 600|500 Vdc|Vac | ||
| 30 to 22 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907020 |
Factory Lead Time:
