43650-0415
Pin Header, Power, Wire-to-Board, 3 mm, 1 Rows, 4 Contacts, Through Hole Straight

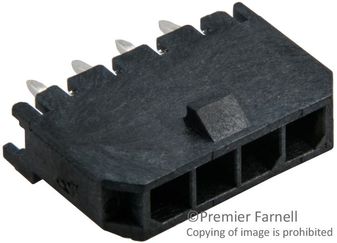

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Power Connectors
Avnet Manufacturer Part #: 43650-0415
Secondary Manufacturer Part#: 95C1789
-
RoHS 10 Compliant -
Tariff Charges
The 43650-0415 is a 4-circuit 1-row 3mm pitch Micro-Fit 3.0™ vertical header with PCB polarizing peg, tin-plated brass contacts and through hole termination. This 43650 series PCB header is made of high temperature thermoplastic, mates with 43645 series Micro-Fit 3.0™ receptacle housing, suitable for power and wire-to-board applications.
- Withstands high-temperature 265°C IR reflow processes
- Fully polarized housing prevents accidental mismating
- Positive latching prevents accidental disconnects
- Locking tang on terminal secures terminals in housings
- Black colour
- Glow-wire compliant
- UL94V-0 flammability rating
- Current rating per contact is 5A
- Voltage rating is 600V
- Operating temperature range from -40°C to +105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled LCP (Liquid Crystal Polymer) | ||
| Straight | ||
| Brass Alloy | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Matte Tin Over Nickel | ||
| 260 | ||
| Through Hole | ||
| 4 | ||
| 1 | ||
| 4 | ||
| -40 to 105 to 105 °C | ||
| 3 mm | ||
| 5.57 mm | ||
| 15.65 x 5.57 x 9.9 mm | ||
| 9.9 mm | ||
| 15.65 mm | ||
| 43650 | ||
| Solder | ||
| Power |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
