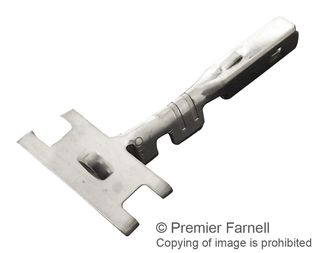

33012-3002
Contact Power|Signal Socket Crimp Straight Cable Mount
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 33012-3002
Secondary Manufacturer Part#: 33012-3002
-
RoHS 10 Compliant -
Tariff Charges
33012-3002 is a 33012 series MX150 female terminal for mat-sealed connectors.
- Pre-assembled connector housings and TPA components shipped in one-piece units
- Integral, two-way mat seal on the plugs and receptacles
- Exceeds IP67 requirements and conforms to UL 1977
- Integral terminal position assurance (TPA)
- Sealed panel-mount plugs are equipped with blind-hole boss feature
- Audible and tactile clicks on insertion, extraction and mating
- Simple crimp, poke-and-plug application
- Two independent terminals for 8AWG and 10 to 12AWG wire
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| 0.75 to 1 mm² | ||
| Wire to Board Connector | ||
| Copper Alloy | ||
| Tin Over Nickel | ||
| Power|Signal | ||
| Socket | ||
| Tin Over Nickel | ||
| Cable Mount | ||
| 0.508 um | ||
| 20.45 x 3.1 x 3.33 mm | ||
| 33012 | ||
| No | ||
| Crimp | ||
| 20 to 18, 20 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
