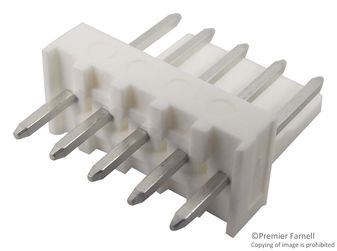

22-27-2051
Pin Header, Square Pin, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 5 Contacts, Through Hole Straight
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 22-27-2051
Secondary Manufacturer Part#: 0022272051
-
RoHS 10 Compliant -
Tariff Charges
The 22-27-2051 from Molex is a 2.54mm pitch KK 254 wire to board header with friction lock. It is a single row, 5 position and vertical PCB header. Mates with 2695, 6471 KK crimp terminal housing.
- Brass material with tin plating
- Flammability rating is 94V-0
- Current rating is 4A and voltage rating is 250V
- CSA LR19980 certified and UL E29179 listed
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Brass | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Through Hole | ||
| 5 | ||
| 1 | ||
| 2.54 mm | ||
| 6410 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
