22-27-2031
Conn Partial Shrouded Header 3 POS 2.54mm Solder ST Through Hole Bag

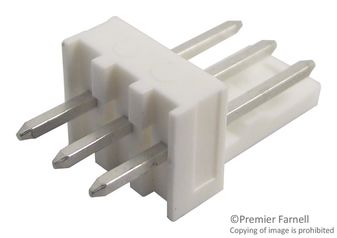

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 22-27-2031
Secondary Manufacturer Part#: 22-27-2031
-
RoHS 10 Compliant -
Tariff Charges
The 22-27-2031 from Molex is a 6410 series KK 254, single row, vertical wire to board header with 3 position. It mates with 2695, 6471 KK crimp terminal housing.
- Available with friction lock
- Natural (white) colour resin
- Flammability rating meets UL94 V-0
- Brass contacts with tin plating
- Nylon resin material
- Mating pitch interface pitch of 2.54mm and termination pitch interface of 2.54mm
- UL E29179 and CSA LR19980 approved
- Maximum current per contact of 4A and maximum voltage of 250V
- Through hole termination interface
- Operating temperature range from -40°C to 80°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Brass | ||
| Tin | ||
| Header | ||
| Through Hole | ||
| 3 | ||
| 1 | ||
| 2.54 mm | ||
| 6410 | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
