22-05-3031
Pin Header, Signal, Wire-to-Board, 2.54 mm, 1 Rows, 3 Contacts, Through Hole Right Angle
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 22-05-3031
Secondary Manufacturer Part#: 22-05-3031
-
RoHS 10 Compliant -
Tariff Charges

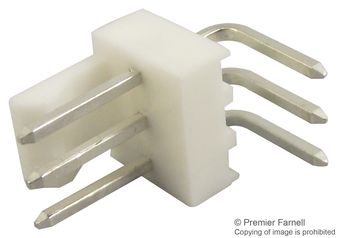

The 22-05-3031 is a 3-way 1-row KK® 254 right angle solid header with friction lock, tin-plated (Sn) brass contacts, 2.54mm pitch, 3.58mm PC tail length, through hole and natural (white) nylon housing. This right angle solid header is suitable for signal and wire-to-board. Mates with 2695, 6471, 7880, 4455 and 7720 parts.
- UL94V-0 flammability rating
- Partial shrouded
- Stackable
- Maximum current per contact is 4A
- Maximum voltage is 250V
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Right Angle | ||
| Brass | ||
| Tin | ||
| Header | ||
| White | ||
| Tin | ||
| 235 | ||
| 10 mOhm | ||
| 4 A | ||
| Through Hole | ||
| 3 | ||
| 1 | ||
| 0 to 75 °C | ||
| 2.5400 mm | ||
| 12.83 mm | ||
| 7.62 x 12.83 x 6.35 mm mm | ||
| 6.35 mm | ||
| 7.62 mm | ||
| 7478 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
