207235-0100
Flexible Antenna, Dual Band, Linear, 824 MHz to 960 MHz, 1.71 GHz to 2.17 GHz, Adhesive Mount

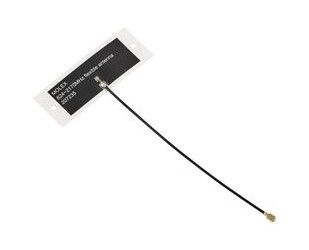

Click image to enlarge
Manufacturer:Molex
Product Category:
RF & Wireless, Antennas, Internal Antennas
Avnet Manufacturer Part #: 207235-0100
Secondary Manufacturer Part#: 2072350100
-
RoHS 10 Compliant -
Tariff Charges
The 207235-0100 is a small size, low-profile monopole Cellular Flexible Antenna antenna for 824 to 960 / 1710 to 2170MHz band applications. This antenna is made from poly-flexible material, has a tiny form factor (40.40mm x 15.40mm x 0.10mm) and double-sided 3M adhesive for easy “peel and stick” mounting. This wide-band antenna future-proofs wireless application developments to support evolving LTE and 4G cellular technologies.
- 40.4x15.4x0.1mm size
- IPEX MHF (U.FL compatible) connector
- Cable OD1.13mm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Dual Band | ||
| Adhesive | ||
| Linear | ||
| Flexible | ||
| 824MHz to 960MHz, 1.71GHz to 2.17GHz | ||
| 0dBi, 4.3dBi | ||
| Adhesive Mount | ||
| 85 °C | ||
| -40 °C | ||
| 207235 Series | ||
| LTE |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8517710000 |
| Schedule B: | 8517710000 |
Ships
in 1 bus. day
