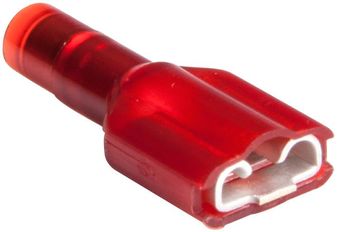

19002-0002
Quick Disconnect Terminal, Nylon (Polyamide), Tin, 22 to 18 AWG, Brass, Red
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Terminals, Crimp Terminals - Quick Connect & Disconnect
Avnet Manufacturer Part #: 19002-0002
Secondary Manufacturer Part#: 0190020002
-
RoHS 10 Compliant -
Tariff Charges
The 19002-0002 is an Avikrimp™ fully insulated quick female disconnect terminal for 22 to 18AWG wire, with tin-plated brass contact. This 19002 series quick disconnect terminal is nylon (PA) insulated, used with 19001-0001, 19001-0002 disconnects. Standard quick-disconnect terminal provides fast and reliable connection and disconnection of two wires, fully-insulated quick-disconnect terminal are available in a variety of options to meet industry requirements.
- Accommodates multiple standard tab sizes - provides flexibility for a wide variety of applications
- Fully insulated ensures optimum safety from electric shock
- Glow-wire compliant
- UL94V-2 flammability rating
- Voltage rating is 300V
- Temperature rating of -65 to 105°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null | ||
| null |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Ships
in 1 bus. day
