172704-0047

Name: 172704-0047
Brand: Molex
SKU: 172704-0047
Availability: InStock

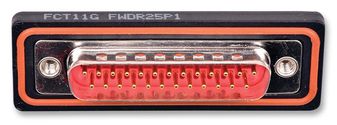

Conn D-Subminiature PIN 25 POS Solder ST Panel Mount 25 Terminal 1 Port

Click image to enlarge

Manufacturer:Molex

Product Category: Connectors, D-Shaped Connectors, Standard D-Sub Connectors

Avnet Manufacturer Part #: 172704-0047

Secondary Manufacturer Part#: 1727040047

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Base/Housing Material	Thermoplastic
	Body Orientation	Straight
	Contact Material	Copper Alloy
	Contact Plating	Gold
	Gender	Pin
	Lead Finish	Tin over Nickel
	Mounting	Panel Mount
	Operating Temperature	-25 to 70 °C
	Product Depth	14.4 mm
	Product Dimensions	62 x 14.4 x 21
	Product Height	21 mm
	Product Length	62 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8537109170
Schedule B:	8537109090

In Stock : 0

Additional inventory

Factory Lead Time: 140 Weeks

Price for: Each

Quantity:

Min:25 Mult:25

USD $:

25+

$23.24466

100+

$19.92655

250+

$18.3652

500+

$18.2715

1250+

$18.1778
