171692-0102
Connector Housing Power Receptacle 2 Position 5.7 mm Straight Cable Mount Box
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 171692-0102
Secondary Manufacturer Part#: 38X3479
-
RoHS 10 Compliant -
Tariff Charges

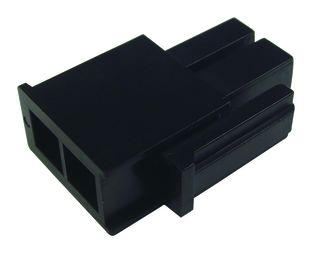

The 171692-0102 is a 2-way 2-row Mega-Fit® receptacle housing with 5.70mm pitch and PBT construction. Suitable for use with Mega-Fit® 172063 series female crimp terminals.
- Maximum current per contact is 23A
- Black colour
- Operating temperature range from -40 to 120°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Straight | ||
| Plug | ||
| Black | ||
| 23 A | ||
| Cable Mount | ||
| 2 | ||
| 2 | ||
| -40 to 105 °C | ||
| 5.7 mm | ||
| 24.92 mm | ||
| 8.35 mm | ||
| 171692 | ||
| Housing | ||
| 600|600 Vdc|Vac | ||
| 14 to 12, 22 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907060 |
Factory Lead Time:
