09-50-8031

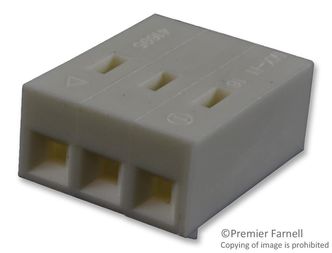

Connector Housing, KK 396 41695 - Friction Ramp Series, Receptacle, 3 Ways, 3.96 mm
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 09-50-8031
Secondary Manufacturer Part#: 0009508031
-
RoHS 10 Compliant -
Tariff Charges
The 09-50-8031 is a 3-way 1-row KK® 3.96mm female crimp terminal housing made of polyester with friction ramp. It mates with 41791, 41792, 41671, 41672, 41661 and 41662 KK® 396 headers. The crimp housing is suitable for power and wire-to-board applications. This 41695 series crimp housing can be used with 2478, 2578, 6838, 7258 and 45570 series KK® 396 crimp terminals.
- Natural colour
- UL94V-0 flammability rating
- Lock to mating part
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass Filled Polyester | ||
| Straight | ||
| Receptacle | ||
| Natural | ||
| Cable Mount | ||
| 3 | ||
| 1 | ||
| 0 to 75 °C | ||
| 3.96 mm | ||
| 15.88 mm | ||
| 12.75 x 15.88 x 8.07 mm | ||
| 8.07 mm | ||
| 12.75 mm | ||
| 41695 | ||
| Wire to Board Housing | ||
| 600 Vdc|Vac | ||
| 26 to 18 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
