09-48-4079

Name: 09-48-4079
Brand: Molex
SKU: 09-48-4079
Availability: InStock

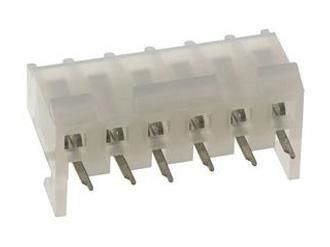

Click image to enlarge

Manufacturer:Molex

Product Category: Connectors, PC Board, Pin & PCB Headers

Avnet Manufacturer Part #: 09-48-4079

Secondary Manufacturer Part#: 09-48-4079

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Connector Body Material	Polyester
	Connector Orientation	Straight
	Contact Material	Phosphor Bronze
	Contact Plating	Tin
	Contact Termination Type	Solder
	Gender	Receptacle
	Mounting	Through Hole
	Pitch Spacing	3.96 mm
	Termination Method	Solder

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536694040

In Stock : 20.0

Ships in 1 bus. day

Additional inventory

Factory Lead Time: 119 Weeks

Price for: Each

Quantity:

Min:1 Mult:1

USD $:

45+

$1.83578

424+

$1.6733

847+

$1.54

1694+

$1.4196

3388+

$1.38663
