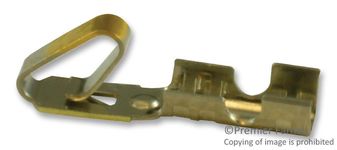

08-55-0102
Contact, KK® 254, KK 254 2759, Socket, Crimp, 22 AWG, Gold Plated Contacts
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Connector Contacts, Other Contacts
Avnet Manufacturer Part #: 08-55-0102
Secondary Manufacturer Part#: 54H5446
-
RoHS 10 Compliant -
Tariff Charges
08-55-0102 is a 2759 series KK® 254 female/socket crimp terminal made of brass with gold plated finish. For use with 2695 KK 254 single-row crimp housings, 5051 KK 2.50mm pitch single row receptacle housings.
- Nickel material plating termination
- Crimp or compression termination interface style
- Suitable for 22, 24, 26, 28, 30AWG wire size
- Ideal for signal and wire-to-board applications
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Wire to Board Housing | ||
| Brass | ||
| Gold Over Nickel | ||
| Signal | ||
| Socket | ||
| Gold Over Nickel | ||
| 10 mOhm | ||
| 4 A | ||
| Cable Mount | ||
| -40 to 80 to 75 °C | ||
| 0.381 um | ||
| 9.7 x 2.1 x 3.68 mm | ||
| 2759 | ||
| No | ||
| Crimp | ||
| 30 to 22, 30 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8536904000 |
Factory Lead Time:
