03-06-1023
Connector Housing, Free-Hanging, Standard .062" 1625, Receptacle, 2 Ways, 3.68 mm"
Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 03-06-1023
Secondary Manufacturer Part#: 0003061023
-
RoHS 10 Compliant -
Tariff Charges

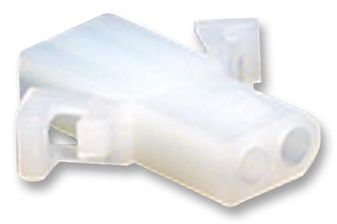

The 03-06-1023 is a 2-way 0.062" pin and socket receptacle housing for crimp terminals without mounting ears. It is suitable for wire to wire applications."
- Mates with 03-06-2023 , 03-06-2024 , 03-06-7023
- Natural white colour
- Suitable for 1561, 4529, 2190, 1855 female crimp terminals, 1560, 1786, 1854 male crimp terminals
- UL94V-2 flammability rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon 66 | ||
| Straight | ||
| Receptacle | ||
| Natural | ||
| 5 A | ||
| Cable Mount | ||
| 2 | ||
| 1 | ||
| -40 to 105 to 105 °C | ||
| 3.68 mm | ||
| 20.62 mm | ||
| 8.64 x 20.62 x 5.95 mm | ||
| 5.95 mm | ||
| 8.64 mm | ||
| 1625 | ||
| Wire to Wire | ||
| 250 V | ||
| 30 to 18 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8538906000 |
| Schedule B: | 8538907080 |
Ships
in 1 bus. day
