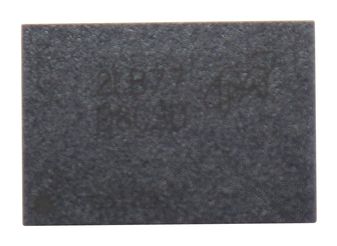

MT53E512M32D1ZW-046 IT:B

MT53E512M32D1 is a 16Gb mobile low-power DDR4 SDRAM with low VDDQ (LPDDR4X) high-speed, CMOS dynamic random-access memory device. This device is internally configured with 2 channels or 1 channel ×16 I/O, each channel having 8-banks.

• 16n prefetch DDR architecture, 8 internal banks per channel for concurrent operation
• Single-data-rate CMD/ADR entry, bidirectional/differential data strobe per byte lane
• Programmable READ and WRITE latencies (RL/WL), programmable VSS (ODT) termination
• Directed per-bank refresh for concurrent bank operation and ease of command scheduling
• On-chip temperature sensor to control self refresh rate, partial-array self refresh (PASR)
• Selectable output drive strength (DS), clock-stop capability, single-ended CK and DQS support
• 1.10V VDD2 / 0.60V VDDQ or 1.10V VDDQ operating voltage
• 512 Meg x 32 configuration, LPDDR4, 1 die addressing
• 200-ball TFBGA (Ø0.40 SMD) package, 468ps cycle time
• Operating temperature rating range from -40°C to +95°C
