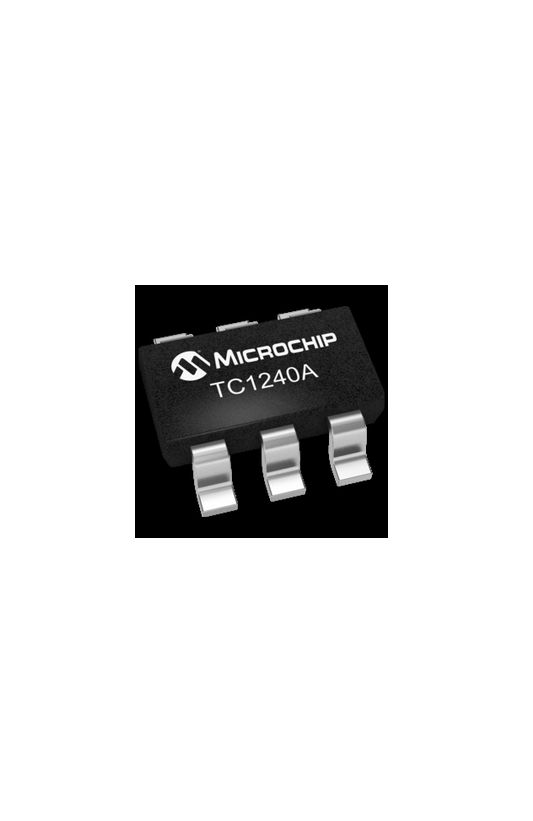

TC1240AECHTR
DC/DC Adjustable Charge Pump Voltage Converter, 2.5V to 5.5V in, 5V to 11V/20 mA out, SOT-23A-6
Click image to enlarge
Manufacturer:Microchip
Product Category:
Power Management, Voltage Regulators, DC / DC Inductorless Charge Pumps
Avnet Manufacturer Part #: TC1240AECHTR
Secondary Manufacturer Part#: 92C5741
-
RoHS 10 Compliant -
Tariff Charges
The TC1240AECHTR is a doubling CMOS charge Pump Voltage Converter for battery powered devices, PDAs and portable data loggers. The TC1240A doubles an input voltage that can range from +2.5 to +5.5V. Conversion efficiency is typically 99%. Internal oscillator frequency is 160kHz for both devices. The TC1240A have an active-high shutdown that limits the current consumption of the devices to less than 1µA. External component requirement is only two capacitors for standard voltage doubler applications. All other circuitry (including control, oscillator and power MOSFETs) are integrated on-chip.
- 99% Typical voltage conversion efficiency
- Voltage doubling
- Low output resistance (12O typical)
- Only two external capacitors required
- Consumes 550µA (typical) in active mode
- Power-saving shutdown mode (1µA maximum)
- Shutdown input fully compatible with 1.8V logic systems
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 5 V | ||
| Step Up | ||
| 5.5 V | ||
| 2.5 V | ||
| Matte Tin | ||
| 260 | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 6 | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 20 mA | ||
| 5 to 11 V | ||
| 6SOT-23A | ||
| 6 | ||
| 3.1 x 1.8 x 1.3 mm | ||
| SOT-23A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
