SY100ELT22LZG
TTL-to-Differential PECL Translator, 2 Input, 50 mA, 300 ps, 3 V to 3.8 V, SOIC-8

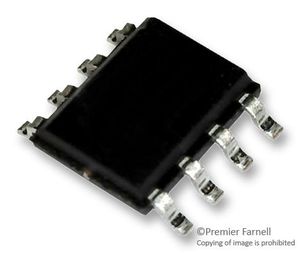

Click image to enlarge
Manufacturer:Microchip
Product Category:
Logic ICs, Translators / Level Shifters
Avnet Manufacturer Part #: SY100ELT22LZG
Secondary Manufacturer Part#: SY100ELT22LZG
-
RoHS 10 Compliant -
Tariff Charges
The SY100ELT22LZG is a dual TTL-to-differential PECL Translator with 3.3V power supply. Because PECL (positive ECL) levels are used, only 3.3V and ground are required. It is ideal for applications which require the translation of a clock and a data signal. The ELT22L is available in both ECL standards: the 10ELT is compatible with positive ECL 10H logic levels, while the 100ELT is compatible with positive ECL 100K logic levels.
- Low power
- Differential PECL outputs
- PNP TTL inputs for minimal loading
- Flow-through pinouts
- 100ps Output-to-output skew
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| ELT | ||
| Translator | ||
| 0.6@3V to 3.8V ns | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 3.3000 V | ||
| -40 to 85 °C | ||
| LVCMOS | ||
| 8SOIC | ||
| No | ||
| TTL to PECL |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Ships
in 1 bus. day
