RN-SMA-4
External Antenna, Whip, Single Band, 2.45 GHz, Connector Mount
Click image to enlarge
Manufacturer:Microchip
Product Category:
RF & Wireless, Antennas, External Antennas
Avnet Manufacturer Part #: RN-SMA-4
Secondary Manufacturer Part#: RN-SMA-4
-
RoHS 10 Compliant -
Tariff Charges

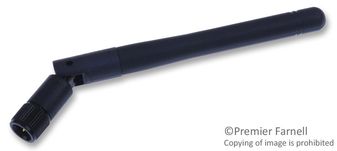

RN-SMA-4 is a long range, 4inch high performance antenna with a SMA male connector. This RCT 1/2 wave 2.4GHz antenna delivers outstanding performance and orientation flexibility in a compact physical package. The antenna’s innovative articulating base allows it to tilt and swivel for optimum orientation. The RCT mounts quickly via an SMA connector.
- Tilts and rotates
- Very low VSWR
- Excellent performance
- Omni directional pattern
- Fully weatherized
- Rugged and damage resistant
- SMA male connector
- 2.20dBi Gain
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Vertical |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8529104040 |
| Schedule B: | 8529104000 |
Factory Lead Time:
