MIC4469YWM
DRIVER, 4-in-1 Low-Side MOSFET Driver, 1.2A-Peak, Bipolar/CMOS/DMOS, 16-Pin Wide SOP, Pb Free

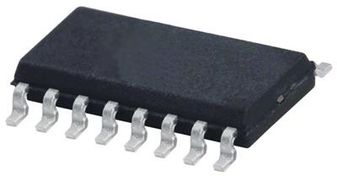

Click image to enlarge
Manufacturer:Microchip
Product Category:
Power Management, Drivers & Controllers, Gate Drivers
Avnet Manufacturer Part #: MIC4469YWM
Secondary Manufacturer Part#: MIC4469YWM
-
RoHS 10 Compliant -
Tariff Charges
The MIC4469YWM is a 4-output CMOS Buffer/Driver with an expansion from the earlier single and dual-output driver, to which it is functionally closely related. The driver has been equipped with a 2-input logic gate for added flexibility. Although primarily
- Built using reliable, low power CMOS processes
- 25ns Symmetrical rise and fall times
- 75ns Short, equal delay times
- 6pF Typical Low equivalent input capacitance
- ESD protected
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| SOIC | ||
| 30 ns | ||
| Inverting, Non-Inverting, Non-Inv | ||
| MSL 3 - 168 hours | ||
| 4 | ||
| 16 | ||
| 85 °C | ||
| -40 °C | ||
| 45 ns | ||
| MOSFET | ||
| 1.2 A | ||
| 1.2 A | ||
| 18 V | ||
| 4.5 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542390050 |
| Schedule B: | 8542390060 |
Factory Lead Time:
