MA330024

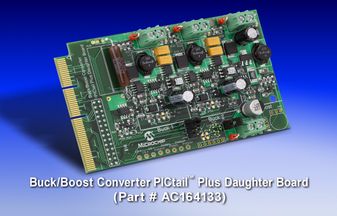

The MA330024 Plug In Module is small circuit board used with the Explorer 16 board (DM240001 or DM240002) and Buck/Boost Converter PICtail Plus Daughter Board (AC164133) to evaluate dsPIC33FJ64GS610 MCU. The dsPIC33FJ64GS610 is a high performance 16bit Digital Signal Controller in a 100 pin TQFP package. These plug into the main processor socket of the development boards so that different microcontrollers can be used for prototyping, demonstration or development quickly and easily.

• Code efficient (C and Assembly) architecture
• High Speed PWM
• Two UART modules
• Two 4 wire SPI modules (15 Mbps)
• ECAN module (1 Mbaud) CAN 2.0B support
• Two I2C modules (up to 1 Mbaud) with SMBus Support
• PPS to allow function remap
• 4 channel DMA with user selectable priority arbitration
