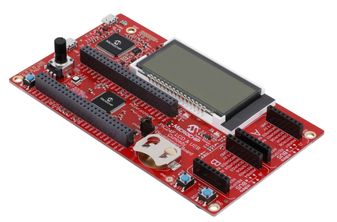

DM240018

DM240018 is a PIC24F LCD and USB curiosity development board. It is a cost-effective, fully integrated development platform that facilitates you to explore segmented LCD interfacing and various features of the low power PIC24F MCUs with a USB and an integrated LCD controller. Designed from the ground-up to take full advantage of Microchip’s MPLAB® X IDE and MPLAB Code Configurator (MCC), the board includes an integrated programmer/debugger and requires no additional hardware, simplifying your prototyping.

• On-board LCD panel with backlight
• Full speed USB interface
• Integrated programmer/debugger with USB interface and COM port
• Digital temperature sensor (TC77)
• Analog potentiometer, multiple user LED’s, RGB LED and switches
• 32.768KHz secondary OSC for RTCC
• Female headers for access to microcontroller I/O pins
• Circuit prototyping area
• Power sources: USB power, VBAT emulation circuitry with a secondary coin cell
• Test points to measure device current consumption
