DM164151

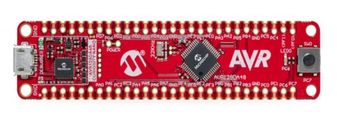

AVR128DA48 Curiosity Nano evaluation kit is a hardware platform to evaluate microcontrollers in the AVR-DA family. This board has the AVR128DA48 microcontroller (MCU) mounted. Supported by Atmel Studio and Microchip MPLAB® X Integrated Development Environments (IDEs), the board provides easy access to the features of the AVR128DA48 to explore how to integrate the device into a custom design. The Curiosity Nano series of evaluation boards include an on-board debugger. No external tools are necessary to program and debug the AVR128DA48.

• One yellow user LED, one mechanical user switch
• One 32.768KHz crystal
• Board identification in Atmel Studio/Microchip MPLAB® X IDE
• One green power and status LED
• 500mA maximum output current (limited by ambient temperature and output voltage)
• Virtual serial port (CDC), two debug GPIO channels (DGI GPIO)
• USB powered
• MIC5353 LDO regulator controlled by the on-board debugger
• 1.8V to 5.1V output voltage (limited by USB input voltage)
