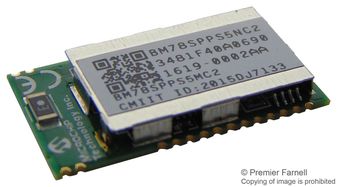

BM78SPPS5NC2-0002AA

The BM78 module is a fully-certified, Bluetooth version 4.2 module for customers to easily add dual-mode Bluetooth wireless capability to their products. The BM78 is built around Microchip's IS1678 Bluetooth dual-mode module, and it is available in ROM-based (BM78SPPx5NC2) and Flash-based (BM78SPPx-5MC2) versions. The BM78 bridges the customer products to smart phones or tablets for convenient data transfer, control, and access to cloud applications delivering local connectivity for IoT. The BM78 supports GAP, SDP, SPP, and GATT profiles. Data transfer is achieved through the Bluetooth link by sending or receiving data through transparent UART mode, making it easy to integrate with any microprocessor or Microcontroller (MCU) with a UART interface. It also enables a easy configuration by using a UI tool, a Windows configuration utility, or directly through UART by MCUs.

Bluetooth Classic (BR/EDR) and Low Energy (LE) Certified to FCC, IC, MIC, KCC, and NCC radio regulations European R&TTE Directive Assessed Radio module Bluetooth SIG 4.2 qualified Transparent UART mode for seamless serial data over UART interface Easy to configure with User Interface (UI) tool, a Windows® configuration utility or directly by MCUs Firmware can be upgraded in the field over UART (Flash version) Integral chip antenna or external antenna Integrated crystal, internal voltage regulator, and matching circuitry Configurable I/O pins for control and status Supports Apple® iPod Accessory Protocol (iAP2) Supports Bluetooth 4.2 LE secure connections Bluetooth 4.2 LE data packet length extension Small and compact surface mount module Castellated SMT pads for easy and reliable PCB mounting Ideal for portable battery operated devices One LED driver with 16 steps brightness control
