ATWINC1500-MR210UB1954

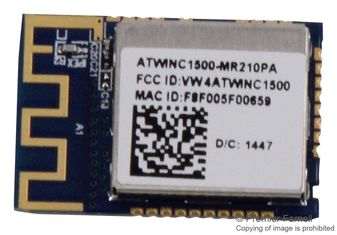

The ATWINC1500-MR210PB is a low-power consumption 802.11 b/g/n IoT (Internet of Things) module which is specifically optimized for low power IoT applications. The highly integrated module features small form factor (21.5mm x 14.5mm x 2.1mm) while fully integrating Power Amplifier, LNA, Switch, Power Management, and PCB antenna. With seamless roaming capabilities and advanced security, it could be interoperable with various vendors’ 802.11b/g/n Access Points in wireless LAN. The module provides SPI and UART to interface to host controller.

• IEEE® 802.11 b/g/n 20MHz (1x1) solution
• Single spatial stream in 2.4GHz ISM band
• Integrated PA and T/R Switch
• Integrated PCB antenna
• Superior Sensitivity and Range via advanced PHY signal processing
• Advanced Equalization and Channel Estimation
• Advanced Carrier and Timing Synchronization
• Wi-Fi Direct and Soft-AP support
• Supports IEEE 802.11 WEP, WPA, WPA2 Security
• Supports China WAPI security
• Superior MAC throughput via hardware accelerated two-level A-MSDU/A-MPDU frame aggregation and block acknowledgement
• On-chip memory management engine to reduce host load
• SPI, UART, and I2C host interfaces
• 2- or 3-wire Bluetooth® coexistence interface
• Operating temperature range of -40°C to +85°C
• I/O operating voltage of 2.7V to 3.6V
• Integrated Flash memory for system software
• Power Save Modes
  • <4µA Power Down mode typical @3.3V I/O
  • 380µA Doze
