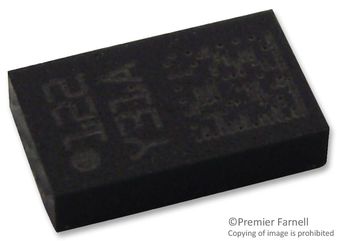

AT17LV010-10CU

The AT17LV FPGA Configuration EEPROMs (Configurators) provide an easy-tousle, cost-effective configuration memory solution for Field Programmable Gate Arrays. The AT17LV devices are packaged in the 8-lead LAP, 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP. The AT17LV Configurators use a simple serial-access procedure to configure one or more FPGA devices. The user can select the polarity of the reset function during programming. These devices also support a write protection mechanism within its programming mode.

• EE Programmable Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs)
  • 1,048,576 x 1-bit
• Supports both 3.3V and 5.0V Operating Voltage Applications
• In-System Programmable (ISP) via 2-wire Bus
• Simple Interface to SRAM FPGAs
• Compatible with the ® AT6000, AT40K and AT94K Devices, Altera® FLEX®, APEX™ Devices, ORCA®, Xilinx® XC3000, XC4000, XC5200, Spartan®, Virtex® FPGAs
• Cascadable Read-back to Support Additional Configurations or Higher-density Arrays
• Very Low-power CMOS EEPROM Process
• Programmable Reset Polarity
• Available in 6mm x 6mm x 1mm 8-lead LAP (Pin-compatible with 8-lead SOIC Package), 8-lead PDIP, 8-lead SOIC, 20-lead PLCC, 20-lead SOIC and 44-lead TQFP Packages
• Emulation of the AT24CXXX Serial EEPROMs
• Low-power Standby Mode
• High-reliability
  • Endurance: 100,000 Write Cycles
  • Data Retention: 90 Years for Indu
