ADM00716

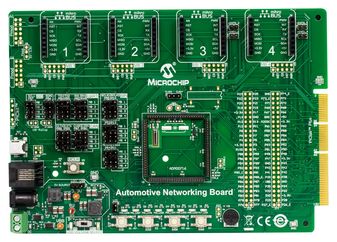

The ADM00716 from Microchip is an automotive networking development board. It is a low cost modular platform for CAN, LIN, CAN-FD network development using 8bit, 16bit and 32bit microcontroller families. It supports devices using the 100 pin plug-in module (PIM) connector for easy device swapping. The board has support for four mikroBUS sockets which allow the user the ability to develop with a variety of MikroElectronika Click add-on boards. The board also includes a PICtail Plus edge connector for backwards compatibility to PICtail Plus boards used with the Explorer 16 development board. The automotive networking development board supports CAN and CAN-FD natively. The CAN digital connection from the microcontroller connects to the TX/RX connection on the mikroBUS header. This connection supports the CAN and CAN-FD transceiver Click boards without having to lose the microcontroller UART connection to the other mikroBUS headers.

• 100 pin PIM header, compatible with the PIM versions of selected PIC MCU and dsPIC DSC devices
• Direct 7V to 30V DC power input that provides +3.3V and +5V (regulated) to the entire board
• Power indicator LED will represent what voltage is applied to the processor PIM
• USB connector for connectivity with MCUs that have a USB module
• Standard 6-wire ICD connector for connections to an MPLAB ICD programmer/debugger module
• Push button switches for device, reset and user defined inputs
• Potentiometer for analogue input and eight indicator LEDs
• Six pin interface for the PICkit programmer, two Pmod interfaces & four mikroBUS headers
• Edge connector for PICtail Plus card compatibility
