HV9805 230VAC Off-Line LED Driver Evaluation Board
Click image to enlarge
Manufacturer:Microchip
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: ADM00657
Secondary Manufacturer Part#: ADM00657
-
RoHS 10 Compliant -
Tariff Charges

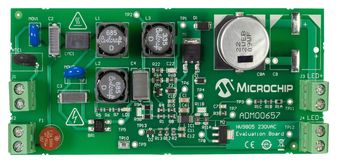

The HV9805 230VAC Off-Line LED Driver Evaluation Board is used to evaluate and demonstrate Microchip Technology Inc.'s HV9805 device in the following topology: 420-430V output Boost Converter application followed by a LED-side linear current regulator, supplied from the mains 230VAC, to drive a 130-150 LED string. The HV9805 230VAC Off-Line LED Driver Evaluation Board was developed to help engineers reduce the product design cycle time.
- Input Voltage: 230VAC ±15%, at 50 Hz Typical
- Output Capability: up to 125 mA
- Efficiency: over 90%
- Pulse-Width Modulation (PWM) Operation: up to 135 kHz
- HV9805 230VAC Off-Line LED Driver Evaluation Board (ADM00657)
- Information Sheet
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Power Management Tools | ||
| No | ||
| No | ||
| Eval Board HV9805 | ||
| Evaluation Board |
