AC164112

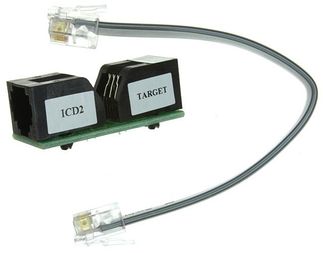

AC164112 is a simple in line voltage clamp necessary when programming and debugging the latest PIC12/PIC16/PIC18 products. The MPLAB ICD 2 provides a 12V supply to Vpp which supports legacy products. This MPLAB ICD 2 Vpp Voltage Limiter clamps this Vpp supply to 8.5V for use with the Microchip products on the latest process technologies released in 2008 or later.

• Price points that bring intelligence and control to cost-sensitive applications
• Low power 1.8V operation up to 5.5V
• Full analog operation throughout entire supply voltage range
• 16 MHz internal oscillator
• Integrated mTouch Capacitive Sensing Module
• Up to (14) 8-bit ADC channels
• I2C, SPI, USART
• (2) Capture Compare PWM channels
• Two 8-bit Timer (TMR0/TMR2)
• One 16-bit Timer (TMR1)
• Watchdog Timer (WDT)
• Enhanced Power-On/Off-Reset
• Brown-Out Reset (BOR)
• In Circuit Serial Programming™ (ICSP™)
