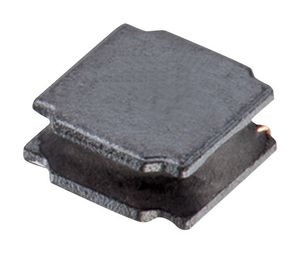

TYS6045220M-10
Power Inductor (SMD), 22 uH, ± 20%, 1.8 A, Shielded, 2.05 A, SMD
-
RoHS 10 Compliant -
Tariff Charges
TYS6045220M-10 is a TYS6045 series TYS-low profile, high current SMT power inductor. It improves performance, reliability, and power efficiency. A lower profile benefits consumer electronics, industrial, and telecom design. The product features extremely low DCR with greater efficiency and enables a large current in a small size. The inductor is of magnetic shielding and wire wound construction and performs in operating temperatures ranging from -40°C to 125°C including self-heating rise in temperature. The applications include DC-DC converter and power suppliers, LCD TVs and gaming consoles, tablets, notebooks, servers and printers, networking and data storage, GPS, set-top-box and base stations, smart meters, and medical instruments.
- Magnetic shielded structure, low DCR and high efficiency
- Low profile and small size, ferrite core with high saturation
- 22.00uH inductance, 1.80A Irsm typ, 2.05A Isat typ
- 10MHz SRF, 89.0mohm typ DCR
- Heat rated current is defined based on temperature rise approximate 40°C (ambient temperature 25°C)
- Operating temperature range from -40°C to +125°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 115.7 mOhm | ||
| 22 uH | ||
| ±20% | ||
| Shielded | ||
| 4.5 mm | ||
| 6 mm | ||
| TYS6045 Series | ||
| 6 mm | ||
| 1.8 A | ||
| 2.05 A |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8504508000 |
| Schedule B: | 8504500000 |
