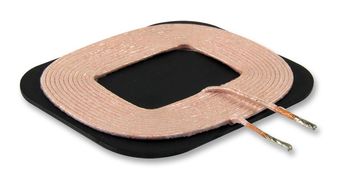

SWC5547AK120-500

Name: SWC5547AK120-500
Brand: Laird Technologies
SKU: SWC5547AK120-500
Availability: InStock

Click image to enlarge

Manufacturer:Laird Technologies

Product Category: Inductors, Wireless Charging Coils

Avnet Manufacturer Part #: SWC5547AK120-500

Secondary Manufacturer Part#: SWC5547AK120-500

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	DC Resistance Max	65
	Inductance Tolerance	10
	Operating Temperature Max	125 °C
	Operating Temperature Min	-40 °C
	Product Height	47.2 mm
	Product Length	55.2 mm
	Quality Factor	90@100

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8504508000
Schedule B:	8504500000

In Stock : 0

Additional inventory

Factory Lead Time: 154 Weeks

Price for: Each

Quantity:

Min:126 Mult:126

USD $:

126+

$6.22673

252+

$6.19496

504+

$6.1632

756+

$6.13143

1008+

$5.9808
