009176003011006
Conn IDC Connector F 3 POS 4mm Solder ST SMD

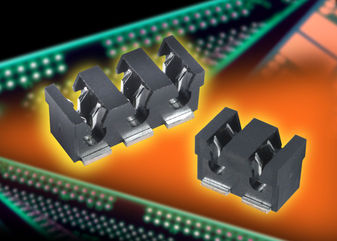

Click image to enlarge
Manufacturer:Kyocera AVX
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 009176003011006
Secondary Manufacturer Part#: 009176003011006
-
RoHS 10 Compliant -
Tariff Charges
The 9176 series accepts 18 AWG to 24 AWG wires with an insulation diameter ranging from 1.1mm to 2.1mm. These dual contact connectors support a 10 amp current rating with two large SMT solder tails per wire to provide maximum stability on the PCB. Availab
- IDC contact provides a gas-tight connection to the PCB for long term reliability
- Connector housing captures the wire insulation for positive strain relief
- Tested to automotive levels on shock, vibration and temperature cycling for
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon 46 | ||
| Straight | ||
| Phosphor Bronze | ||
| Tin | ||
| Receptacle | ||
| Black | ||
| Tin | ||
| 260 | ||
| Surface Mount | ||
| 1 | ||
| -40 to 125 °C | ||
| 4.0000 mm | ||
| 5 mm | ||
| 12 x 5 x 5.1 mm | ||
| 5.1 mm | ||
| 12 mm | ||
| Solder | ||
| IDC Connector |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536695050 |
