009159005001106

Name: 009159005001106
Brand: Kyocera AVX
SKU: 009159005001106
Availability: InStock

Conn Card Edge F 5 POS 2mm Solder RA SMD T/R

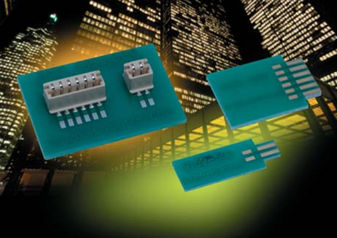

Click image to enlarge

Manufacturer:Kyocera AVX

Product Category: Connectors, PC Board, Card Edge Connectors

Avnet Manufacturer Part #: 009159005001106

Secondary Manufacturer Part#: 009159005001106

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Card Edge Connector Type	Dual Side
	Card Thickness	1.6 mm
	Connector Body Material	Nylon 46
	Connector Body Orientation	Right Angle
	Connector Mounting	Surface Mount
	Contact Material	Phosphor Bronze
	Contact Plating - Mating Side	Tin Plated Contacts
	Contact Termination Type	Solder
	No. of Contacts	5
	Product Range	00-9159 Series

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8536694040
Schedule B:	8536695050

In Stock : 0

Additional inventory

Factory Lead Time: 56 Weeks

Price for: Each

Quantity:

Min:2250 Mult:750
