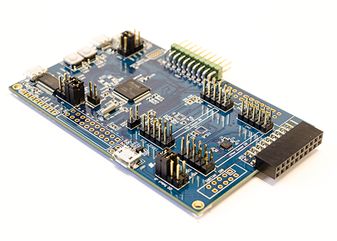

DK-20602
Development Kit for ICM-20602 6-Axis Motion Sensor
Click image to enlarge
Manufacturer:InvenSense
Product Category:
Kits & Tools, Evaluation & Development Kits
Avnet Manufacturer Part #: DK-20602
Secondary Manufacturer Part#: DK-20602
-
RoHS 10 Compliant -
Tariff Charges
Comprehensive development platform for ICM-20602 a high performance 6-axis motion sensor that combines a 3-axis gyroscope and a 3-axis accelerometer. The development kit comes with necessary software including InvenSense® MotionLink, a GUI based development tool and embedded Motion Drivers for ICM-20602. Embedded Motion Drivers (eMD) consists of a set of APIs to configure various aspects of the platform including ICM-20602 sensor parameters such as full-scale range (FSR), output data rate (ODR), low-power or low-noise mode and sensor interface to host (I2C, SPI).
- SmartMotion® platform by InvenSense®
- Microchip G55 MCU with 512KB flash
- On-board embedded debugger for programming and debugging
- USB connectors for host interface to support software debug and sensor data logging
- Board power supply through USB
- Sensor fusion
- Accelerometer, gyroscope and pressure sensor calibration
- Game rotation vector, gravity, linear acceleration android functions
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| No | ||
| Sensors and Transducer Tools | ||
| 512KB Flash | ||
| No | ||
| No | ||
| Serial I2C|SPI|USB | ||
| Development Kit |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | UNKNOWN |
| ECCN: | EAR99 |
| HTSN: | 8473301180 |
| Schedule B: | 8473300002 |
Factory Lead Time:
