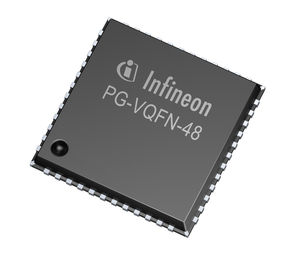

XMC4104Q48K64BAXUMA1

XMC4100 combines Infineon's leading-edge peripheral set with an industry-standard ARM® Cortex®-M4. As one of its key features it offers a high-resolution PWM unit with a tiny resolution of 150ps. This unique peripheral makes it especially suitable for digital power conversion in applications like solar inverters as well as SMPS and uninterruptible power supplies (UPS). Other applications are motor controllers, sense&control and IO devices for factory automation and user interface systems (HMI). XMC4100 is supported by Infineon’s integrated development platform DAVE™ 3, which makes convenient, fast and application-orientated software development possible.

• CPU Core
  • High Performance 32-bit ARM Cortex-M4 CPU
  • 16-bit and 32-bit Thumb2 instruction set
  • DSP/MAC instructions
  • System timer (SysTick) for Operating System support
• Floating Point Unit
• Memory Protection Unit
• Nested Vectored Interrupt Controller
• One General Purpose DMA with up-to 8 channels
• Event Request Unit (ERU) for programmable processing of external and internal service requests
• Flexible CRC Engine (FCE) for multiple bit error detection
• 16 KB on-chip boot ROM
• up to 16 KB on-chip high-speed program memory
• up to 24 KB on-chip high speed data memory
• up to 256 KB on-chip Flash Memory with 1 KB instruction cache
• Universal Serial Bus, USB 2.0 device, with integrated PHY
• Controller Area Network interface (MultiCAN), Full-CAN/Basic-CAN with two nodes, 64 message objects (MO), data rate up to 1 MBit/s
• Four Universal Serial Interface Channel
