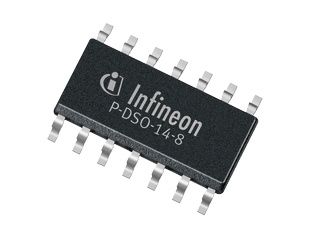

TLE72732GV50XUMA1
LDO Regulator Pos 5V 0.18A 14-Pin DSO
Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Voltage Regulators, LDO Voltage Regulators
Avnet Manufacturer Part #: TLE72732GV50XUMA1
Secondary Manufacturer Part#: TLE72732GV50XUMA1
-
RoHS 10 Compliant -
Tariff Charges
TheTLE7273-2 is a monolithic voltage regulator with integrated window watchdog and reset dedicated for microcontroller supplies under harsh automotive environment conditions. Due to its ultra low quiescent current, the TLE7273-2 is perfectly suited for applications that are permanently connected to battery. In addition, the regulator can be shut down via the Enable input causing the current consumption to drop below 3 µA. The TLE7273-2 is equipped with an output current limitation and an overtemperature shutdown, protecting the device against overload, short circuit and over-temperature. It operates in the wide junction temperature range from -40 °C to 150 °C.
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2 % | ||
| 45 V | ||
| 5.5 V | ||
| 45 to 5.5 V | ||
| 105 K/W | ||
| Matte Tin | ||
| 50 mV | ||
| 90 mV | ||
| 260 | ||
| 0.5@180mA V | ||
| 0.036 mA | ||
| Surface Mount | ||
| 1 | ||
| 14 | ||
| 1 | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 0.18 A | ||
| Fixed | ||
| 5 V | ||
| 14DSO | ||
| 14 | ||
| Positive | ||
| 8.75 x 4 x 1.5 mm | ||
| 5V 180mA LDO Voltage Regulators | ||
| DSO | ||
| 0.25@180mA V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | NO RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
Factory Lead Time:
