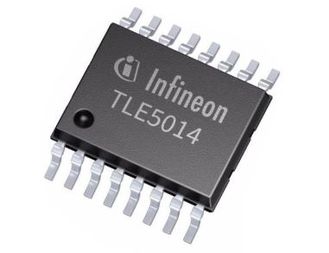

TLE5014SP16E0001XUMA1

Name: TLE5014SP16E0001XUMA1
Brand: Infineon
SKU: TLE5014SP16E0001XUMA1
Availability: InStock

POSITION&CURRENT SENSORS

Click image to enlarge

Manufacturer:Infineon

Product Category: Sensors & Transducers, Magnetic Sensors, Magnetoresistive Sensors

Avnet Manufacturer Part #: TLE5014SP16E0001XUMA1

Secondary Manufacturer Part#: TLE5014SP16E0001XUMA1

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Magnetic Field Max	80
	Magnetic Field Min	25
	No. of Pins	16
	Operating Temperature Max	125 °C
	Operating Temperature Min	-40 °C
	Output Interface	SSC
	Qualification	AEC-Q100
	Sensor Case / Package	PG-TDSO
	Sensor Type	GMR
	Supply Voltage Max	5.5
	Supply Voltage Min	3

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	NO RECOVERY FEE
ECCN:	EAR99
HTSN:	8542390050
Schedule B:	8542390060

In Stock : 0

Additional inventory

Factory Lead Time: 273 Weeks

Price for: Each

Quantity:

Min:2500 Mult:2500

USD $:

2500+

$2.95264

5000+

$2.8376

10000+

$2.72257

20000+

$2.60753

40000+

$2.5596
