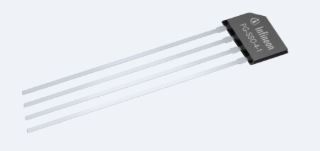

TLE49595UHALA1

TLE49595UHALA1 is a transmission speed sensor. The TLE4959-5U is an integrated differential Hall speed sensor ideally suited for transmission applications. Its basic function is to provide information about rotational speed and direction of rotation to the transmission control unit. TLE4959-5U includes a sophisticated algorithm which actively suppresses vibration while keeping excellent airgap performance.

• Hall based differential speed sensor, high magnetic sensitivity
• Large operating airgap, dynamic self-calibration principle
• Adaptive hysteresis, direction of rotation detection
• High vibration suppression capabilities, three wire PWM voltage interface
• Magnetic encoder and ferromagnetic wheel application
• High immunity against ESD, EMC and mechanical stress, improved voltage dropout capability
• Automotive operating temperature range
• Supply voltage without supply resistance range from 4.0 to 16V
• AEC-Q100 qualified
• PG-SSO-4-1 package, junction temperature range from -40 to 185°C (max. 10 × 1 h, VDD = 16V)
