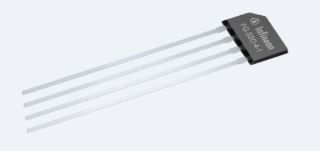

TLE49595UFXHALA1

TLE49595UFXHALA1 is an FX flexible transmission speed sensor. The TLE4959-5U FX is an integrated differential hall speed sensor ideally suited for transmission applications. Its basic function is to provide information about rotational speed and direction of rotation to the transmission control unit. TLE4959-5U FX includes a sophisticated algorithm that actively suppresses vibration while keeping excellent airgap performance.

• Hall based differential speed sensor, high magnetic sensitivity
• Large operating airgap, dynamic self-calibration principle
• Adaptive hysteresis
• Output protocol with and without direction of rotation detection
• High vibration suppression capabilities, three wire voltage interface
• Magnetic encoder and ferromagnetic wheel application
• High immunity against ESD, EMC and mechanical stress, improved voltage dropout capability
• Automotive operating temperature range, end-of-line programmable to adjust transmission requirements
• AEC-Q100 qualified
• PG-SSO-4-1 package, junction temperature range from -40 to 185°C (max. 10 × 1 h, VDD = 16V)
