TLE49161KHTSA1

Name: TLE49161KHTSA1
Brand: Infineon
SKU: TLE49161KHTSA1
Availability: InStock

Hall Effect Sensor 2mA Latch 2.4V to 5V 3-Pin SC-59 T/R

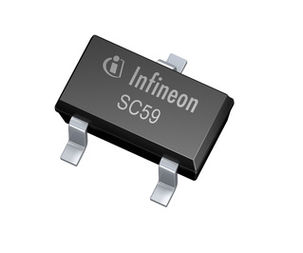

Click image to enlarge

Manufacturer:Infineon

Product Category: Sensors & Transducers, Magnetic Sensors, Hall Effect Switches & Latches

Avnet Manufacturer Part #: TLE49161KHTSA1

Secondary Manufacturer Part#: TLE49161KHTSA1

RoHS 10 Compliant
Tariff Charges

Description

The TLE4916-1K is an integrated Hall-Effect Sensor in a SMD package designed specifically to meet the requirements of low-power automotive and industrial applications with operating voltages of 2.4V - 5.0V. A chopped measurement principle provides high stability switching thresholds for operating temperatures between -40°C and 125°C.

Micro power design

2.4V to 5.0V operation

High sensitivity and high stability of the magnetic switching points

High resistance to mechanical stress by Active Error Compensation

High ESD performance (± 4kV HBM)

Digital output signal

SMD package SC59 (SOT23 compatible)

RoHS compliant (Pb free package)

Technical Attributes

Find Similar Parts

	Description	Value

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	NO RECOVERY FEE
ECCN:	EAR99
HTSN:	8542330001
Schedule B:	8542330000

In Stock : 0

Additional inventory

Factory Lead Time: 777 Weeks

Price for: Each

Quantity:

Min:3000 Mult:3000

USD $:
