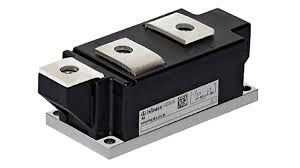

TD820N16KOFHPSA1

Name: TD820N16KOFHPSA1
Brand: Infineon
SKU: TD820N16KOFHPSA1
Availability: InStock

Click image to enlarge

Manufacturer:Infineon

Product Category: Discretes, Thyristors, Thyristor Modules

Avnet Manufacturer Part #: TD820N16KOFHPSA1

Secondary Manufacturer Part#: TD820N16KOFHPSA1

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Average Forward Current	820
	Gate Trigger Current Max	250
	Gate Trigger Voltage Max	2
	No. of Pins	5
	On State RMS Current	1.05
	Operating Temperature Max	135 °C
	Peak Repetitive Off State Voltage	1.6
	Repetitive Peak Reverse Voltage	1.6
	SCR Module Type	Phase Control
	Thyristor Case Style	Module
	Thyristor Mounting	Screw Mount

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	RECOVERY FEE
ECCN:	EAR99
HTSN:	8541300080
Schedule B:	8541300080

In Stock : 0

Additional inventory

Factory Lead Time: 112 Weeks

Price for: Each

Quantity:

Min:2 Mult:2

USD $:

$312.2525
