IRSM807-105MH

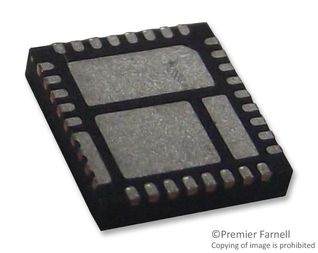

IRSM807-105MH is a 10A, 500V half-bridge module designed for advanced appliance motor drive applications such as energy efficient fans and pumps. IR's technology offers an extremely compact, high performance half-bridge topology in an isolated package. This advanced IPM offers a combination of IR's low RDS(on) Trench FREDFET technology and the industry benchmark half-bridge high voltage, rugged driver in a small PQFN package. At only 8x9mm and featuring integrated bootstrap functionality, the compact footprint of this surface-mount package makes it suitable for applications that are space-constrained. IRSM807-105MH functions without a heat sink.

• Integrated gate drivers and bootstrap functionality
• Suitable for sinusoidal or trapezoidal modulation
• Low RDS(on) Trench FREDFET
• Under-voltage lockout for both channels
• Matched propagation delay for all channels
• Optimized dV/dt for loss and EMI trade offs
• 3.3V input logic compatible
• Active high HIN and LIN
• Isolation 1500VRMS min
• ROHS compliant
