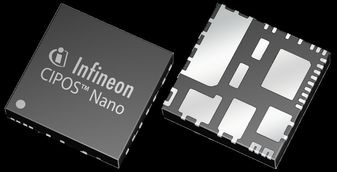

IRSM005-800MHTR
H Bridge Driver 27-Pin QFN EP T/R
Click image to enlarge
Manufacturer:Infineon
Product Category:
Power Management, Drivers & Controllers, Gate Drivers
Avnet Manufacturer Part #: IRSM005-800MHTR
Secondary Manufacturer Part#: IRSM005-800MHTR
-
RoHS 10 Compliant -
Tariff Charges
IRSM005-800MHTR is a CIPOS™ Nano 40V, 0.005ohm half-bridge intelligent power module in QFN 7x8 package providing ultra compact, half-bridge topology solution through a rugged IC in the small QFN package for small home appliances, low power drives which ar
- Based on low RDS(on) Trench FREDFETs
- Under-voltage lockout and 3.3V, 5V, 15V logic input compatible
- Propagation delay matched to defined spec
- Independent gate drive in phase with logic input
- Gate drive supply range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 160 ns | ||
| 260 | ||
| Surface Mount | ||
| MSL 3 - 168 hours | ||
| 2 | ||
| 27 | ||
| -40 to 150 °C | ||
| 150 °C | ||
| -40 °C | ||
| 150 ns | ||
| 27QFN EP | ||
| 27 | ||
| MOSFET | ||
| 7 x 8 x 0.95(Max) | ||
| CIPOS Nano | ||
| No | ||
| Industrial | ||
| 600 mA | ||
| 290 mA | ||
| QFN EP | ||
| 20 V | ||
| 10 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | RECOVERY FEE |
| ECCN: | EAR99 |
| HTSN: | 8542330001 |
| Schedule B: | 8542330000 |
